Product Description

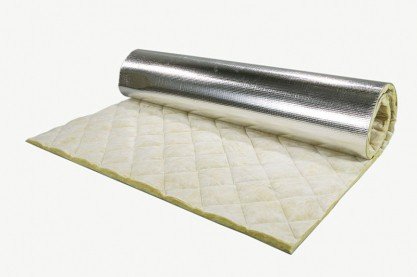

The silent mat is a multilayer design manufactured from a three part laminate build up. This comprises of a heavy central layer core available as a lead mass plenum layer or heavy polymeric barrier with a foil backing. Laminated to this is a low density glass mineral or Rock mineral felt. This layer has a multi option of either being faced as a secondary class 0 foil or a tissue scrim detailed below.
Applications
Used in a range of sound deadening applications and due to its flexibility can be used as heavy plant lagging fans and blowers, Engine/generator compressor or turbine covers both onshore and offshore. Acoustic drapes and covers. Along with a range of other pipe and duct runs in plumbing and other applications.
Glass Fibre Felt (Option 1) Physical Characteristics
Density: 24kg/m3
Resin Binder Content: 1.5 +/-0.2%
Resin Breakdown Temperature: 250’C
Fire Resistance: Euroclass A1
Face options: (Class 0 foil) or white & black tissue
Glass Fibre Felt (Option 2) Physical Characteristics
Density: 45kg/m3
Resin Binder Content: <1%
Resin Breakdown Temperature: 250’C
Fire Resistance: Euroclass A1
Face options: (Class 0 foil) or white & black tissue
Polymeric Barrier
Density options: 5kgm2 and 10kgm2
Fire Resistance: FMVSS 302 self- extinguishing
Reinforcement foil: Class 0
