Product Description

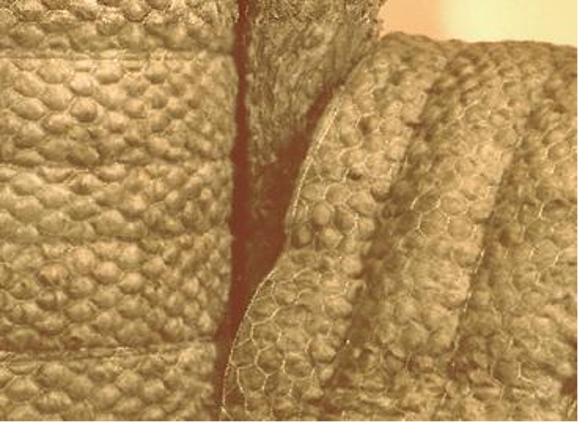

Lancaster Mineral Fibre Galvanised Lagging Mattress comprises unbonded mineral fibres securely stitched to galvanised hexagonal wire mesh to form a mattress with excellent thermal insulation properties, making this product ideal for external insulation lagging and cladding applications in construction projects.
The unbonded nature of the product means that no charring, off-gassing or embrittlement occurs due to degradation of organic binder, making the mattress especially suitable for external insulating of hot industrial plant.
Advantages
Durable – Safe – Cost effective
Chemical Composition
Lancaster Mineral Fibre Galvanised Lagging Mattress is manufactured from basaltic material, incorporating an addition of recycled fibres into the melt. An inherently low level of mineralogical calcite (CaCO3) is maintained, which gives the product very good resistance to attack by acidic residues. Oxide composition is given below:
| Silicon oxide (SiO₂) |
43–50% |
| Aluminium oxide (Al₂O₃) |
11–18% |
| Iron oxide (Fe₂O₃) |
10–15% |
| Calcium oxide (CaO) |
10–14% |
| Magnesium oxide (MgO) |
8–14% |
| Sodium oxide (Na₂O) |
2–5% |
| Potassium oxide (K₂O) |
0.5–3% |
| Titanium oxide (TiO₂) |
2–4.5% |
| Residual mineralogy as CaCO₃ |
0–0.05% |
Physical Characteristics
Mean Filament Diameter (typical): 12um
Minimum Filament Diameter
(as LWGM –2 standard errors): >6um
Mean Filament Length: 80mm
Classification
(EU Directive 97/69EC) Unclassified
Standard Density: 100 kg/m3 (6.25pcf)
High Density: 128kg/m3 (8pcf)
Working temp at 80% Tmax: 600ºC (1110ºF)
Maximum working temperature: 750ºC (1380ºF)
Areas of Application
Lancaster Mineral Fibre Galvanised Lagging Mattress is especially suitable for the external insulation of plant and equipment in the following industries:
Health and Safety
Lancaster Mineral Fibre Galvanised Lagging Mattress achieves the lowest possible risk rating under the EU categorisation of Man Made Vitreous Fibre (potential for carcinogenicity). Full MSDS data will be given on request.
Other Materials
For internal insulation applications in hot gas ducts, silencers and boilers, the Company manufactures GTB® thermal acoustic fibrous basalt materials, the international “benchmark” for gas turbine silencing.
