Product Description
Fire stopping between roof covering and underside of tiles fully encapsulated in our total comfort and foil solutions.
- Up to 2 hours fire integrity
- Provides fire stopping between roof tiles and roof membrane
- Complies with NHBC 2017 7.2.16
- Quickly and easily installed as the tile battens are fitted

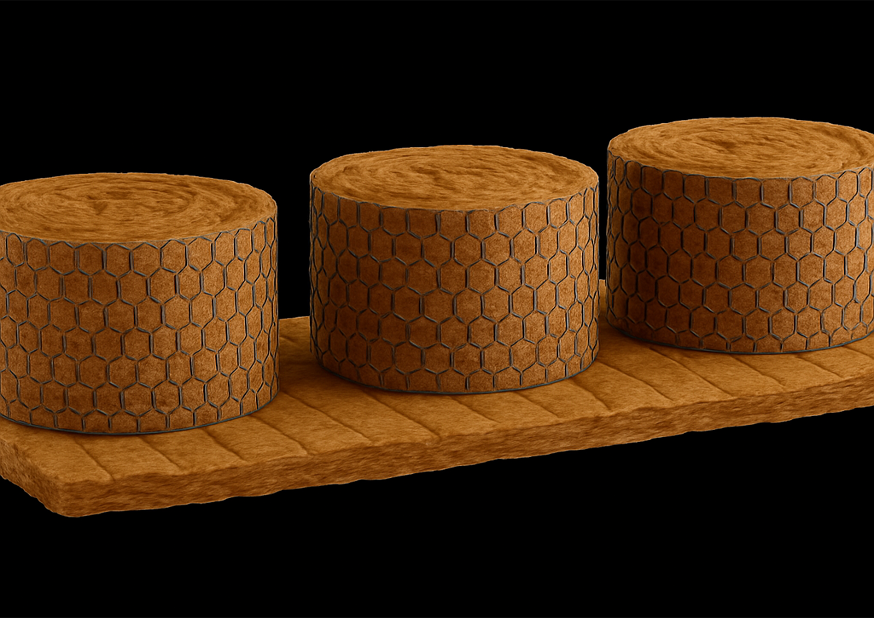

- Manufactured from non-combustible wire reinforced rockfibre mineral wool insulation
- Use as part of the Stoneshield Party Wall System to create a complete party wall fire stopping solution
Application
The Stoneshield Wired Tile Batten Barrier is designed to provide a fire, thermal and acoustic break at the party wall between the roof tiles and roof membrane. It can be used in conjunction with the Stoneshield Party Wall System to create a complete fire break at the separating wall between two dwellings.
Fire Properties
Stoneshield Wired Tile Batten Barrier has been fire tested in accordance with the principles given in EN1366-4, achieving 120 minutes fire integrity and 120 minutes insulation within a masonry construction. Real world performance may be affected by the fire performance of supporting and abutting elements, for example the roof structure and membrane.
It is third-party certificated by IFC Certification, which ensures products have been thoroughly and independently evaluated, and are manufactured to the same specification as tested.
Standards
Manufactured using rockfibre mineral wool achieving a fire classification of Euroclass A1 as defined in BS EN 13501-1.
Installation
- Position the Stoneshield Wired Tile Batten Barrier at the party wall line above the roof covering and before the tile battens are fitted.
- Use a knife and wire cutters to cut through the insulation in line with the leading (top) edge of the tile batten.
- Work the tile batten into the cut in the insulation, ensuring the lower edge is covered by insulation.
- Check insulation height before proceeding to ensure full contact with the back of the roof tile when fitted.
- Handle carefully to avoid damaging the mineral wool.
Key Stats
| Specification | Value |
| Length supplied | 1250mm 2500mm 4000mm |
| Width | 200mm 250mm 333mm |
| Fire Integrity | 120 minutes |
| Insulation | 120 minutes |
| Test Standard | EN1366-4 |
| Thickness | 50mm and 60mm |
| Thermal conductivity | 0.039 W/m·K |
Standard Dimensions & Packaging Specification
All length split / centre options available on request.
| Product Code | Dimensions | Lengths per pack | Packs per pallet |
| Lanc 5 split 50mm | 50 x 200 x 1250mm | 5 | 30 |
| Lanc 5 split 60mm | 60 x 200 x 1250mm | 5 | 30 |
| Lanc 4 split 50mm | 50 x 250 x 2500mm | 4 | 20 |
| Lanc 4 split 60mm | 60 x 250 x 2500mm | 4 | 20 |
| Lanc 3 split 50mm | 50 x 333 x 4000mm | 3 | 15 |
| Lanc 3 split 60mm | 60 x 333 x 4000mm | 3 | 15 |
